Geogrids & Geocomposites

Geogrids & Geocomposites

Geogrids & Geocomposites

Geogrids & Geocomposites

Thrace Group biaxial geogrids are manufactured from polypropylene (PP) sheets using the extrusion method of punching a pattern of holes, followed by stretching in both directions under controlled temperature, in order to reach the material's tensile characteristics. The geogrid composites are produced by heat bonding the geogrids with any type of the Thrace Group Nonwoven geotextiles.

USES & FUNCTIONS

Thrace Group geogrids/geocomposites can be used both to decrease the fill material thickness and to increase the bearing capacity of the underlying soil material. The apertures of the biaxial geogrids aid in aggregate interlock thus allowing for effective reinforcement and soil confinement. Geogrids can also be used to construct mattresses to be placed on soft soils.

FEATURES & BENEFITS

  1. Tensile properties ranging from 15 kN/m to 40 kN/m.
  2. Opening sizes between 25 mm and 66 mm.
  3. Geogrids provide time savings in construction thanks to their ease of installation as well as cost savings resulting from the reduction in the required fill material.
  4. They also fulfill a reinforcing function in the ground structure of cohesive, noncohesive, and coarse grained soils due to their structural tensile strengths.
  5. Geogrid composites also offer separation and filtration functions in addition to the function of reinforcement.

APPLICATIONS

Roads, railways, paving, landfill, erosion control.



PRODUCT SPEC SHEETS

Product Name Tensile Strength MD Tensile Strength CD
TG1 12,4 kN/m 19 kN/m
TG2 19,2 kN/m 28,8 kN/m
TG1515 15 kN/m 15 kN/m
TG1600 16 kN/m 16 kN/m
TG2000 20 kN/m 20 kN/m
TG2020S 20 kN/m 20 kN/m
TG2020L 20 kN/m 20 kN/m
TG2525 25 kN/m 25 kN/m
TG3000 30 kN/m 30 kN/m
TG3030S 30 kN/m 30 kN/m
TG3030L 30 kN/m 30 kN/m
TG3333L 33 kN/m 33 kN/m
TG4000 40 kN/m 40 kN/m
TG4040S 40 kN/m 40 kN/m
TG5050S 50 kN/m 50 kN/m
TG4040L 40 kN/m 40 kN/m

SALES CONTACTS

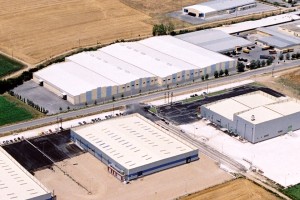

PRODUCTION / DISTRIBUTION FACILITIES
